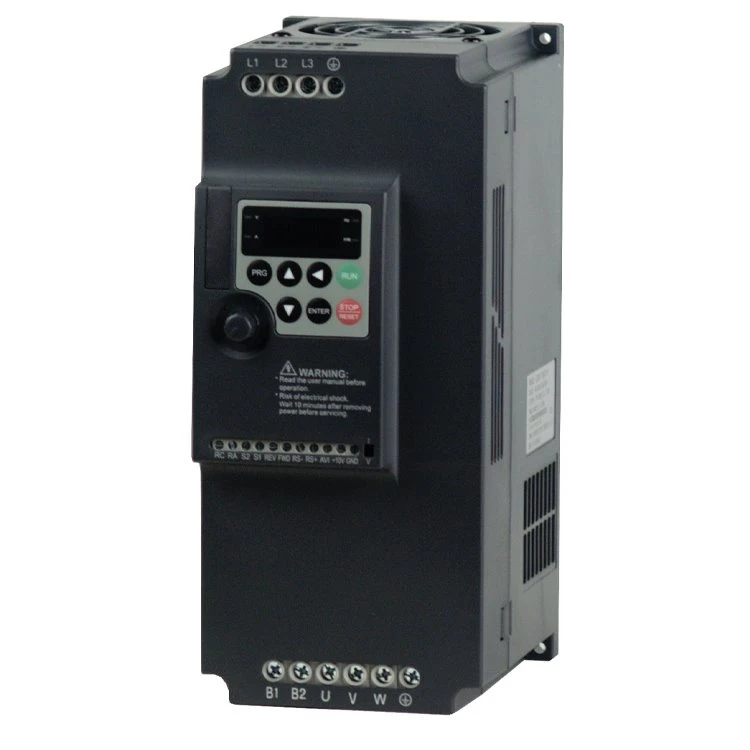

Mini yooj yim Vector Tswj Inverter
● Qhib voj vector tswj, V / F tswj
● Kev muaj peev xwm tshaj yog 60s rau 150 feem pua ntawm cov nqi tam sim no, 3s rau 180 feem pua ntawm cov nqi tam sim no.
● Kev ua haujlwm siab; ib puag ncig adaptation
● Cov qauv yooj yim; Compact loj; Yooj yim nruab
● Economic vector tswj inverter, siab torque tso zis, lub cev muaj zog khiav smoothly thaum thauj khoom hnyav.
● Kev nres tam sim ntawd tsis nres, txo tus nqi ntawm lub tswb nrov nrov
● Kev tiv thaiv muaj nuj nqi: Kev tiv thaiv tawm theem poob, kev tiv thaiv dhau tam sim no, kev tiv thaiv dhau-voltage, Kev tiv thaiv tshaj, Kev tiv thaiv tshaj tshav kub thiab lwm yam.
● Txhawb PM lub cev muaj zog (VLF200 T series)
● Lub hwj chim ntau: 380V 3.7 ~ 160kW

Qauv	Tswv yim Tam sim no (A)	Tso zis Hwj chim (KW)		Muaj peev xwm (KVA)		Tso zis Tam sim no (A)		Tshaj dhau muaj peev xwm (60s) (A)		Lub cev muaj zog Nruab (KW)
Input Voltage (V): 3PH AC380V ntxiv rau 15 feem pua
VLF200-0R75G-4	3.8		0.75		2.2		2.5		3.75		0.75
VLF200-1R5G-4	5		1.5		3.2		3.7		5.55		1.5
VLF200-2R2G-4	5.8		2.2		4		5		7.5		2.2
VLF200-3R7G/5R5P-4	10.7		3.7		6.8		9		13.5		3.7
VLF200-5R5G/7R5P-4	14.6		5.5		10		13		19.5		5.5
VLF200-7R5G/11P-4	20		7.5		11.2		17		25.5		7.5
VLF200-11G/15P-4	26		11		17		25		37.5		11
VLF200-15G/18P-4	35		15		26		32		48		15
VLF200-18G/22P-4	38		18.5		32		37		55.5		18.5
VLF200-22G/30P-4	46		22		37		45		67.5		22
VLF200-30G/37P-4	62		30		52		60		90		30
VLF200-37G/45P-4	76		37		64		75		112.5		37
VLF200-45G/55P-4	90		45		72		90		135		45
VLF200-55G/75P-4	105		55		84		110		165		55
VLF200-75G/90P-4	140		75		115		150		225		75
VLF200-90G/110P-4	160		90		135		176		264		90
VLF200-110G/132P-4	210		110		160		210		315		110
VLF200-132G/160P-4	240		132		193		253		379.5		132
VLF200-160G/185P-4	290		160		230		300		450		160

Qauv	W	H	D	A	B	φd
VLF200-0R75G-4-VLF200-2R2G-4	72	142	112.2	130	61	4.5
VLF200-3R7G/5R5P-4--VLF200-5R5G/7R5P-4	85	180	116	167	72	5.5
VLF200-7R5G/11P-4--VLF200-11G/15P-4	106	240	153	230	96	4.5
VLF200-15G/18P-4--VLF200-22G/30P-4	151	332	165.5	318	137	7
VLF200-30G/37P-4--VLF200-37G/45P-4	217	400	201	385	202	7
VLF200-45G/55P-4--VLF200-55G/75P-4	300	470	240	455	200	4.5
VLF200-75G/90P-4--VLF200-110G/132P-4	275	630	310	612	200	4.5
VLF200-132G/160P-4--VLF200-160G/185P-4	400	715	310	695	320	11
