Product Overview

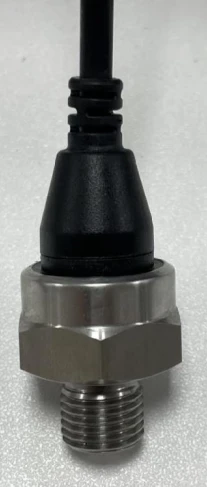

VLF-407 yog ceramic capacitor siab transmitter tsim los ntawm peb lub tuam txhab raws li qhov kev ntseeg siab siab xav tau los ntawm lub tsheb. Qhov zoo tshaj plaws ceramic capacitor sensor muaj cov yam ntxwv zoo ntawm kev tiv thaiv corrosion, cuam tshuam tsis kam, siab elasticity thiab tsis muaj hysteresis tom qab tshwj xeeb txias nti. Nws tuaj yeem siv dav hauv pneumatic system, tsheb nres tsheb, tsheb roj, tsheb cua txias, tsheb cua kom tsawg, lub zog tshiab tsheb thermal tswj, cua compressor, dej twj tso kua mis, ntse lub siab cooker siab nrhiav thiab lwm yam tshuab.

Ntsiab nta

Kev ua haujlwm siab, kev tiv thaiv corrosion, Tsis muaj hysteresis, poob siab tsis kam (tsis muaj to tom qab kev puas tsuaj ntau dhau)

Txais kev sib koom ua ke zoo heev choj siab sensor teeb liab txias siab siab siab nti, siab precision thiab siab stability

Kev ua tau zoo hluav taws xob zoo thiab ntev -lub sij hawm ruaj ntseg Waterproof, tiv thaiv qib mus txog IP65

Txheej txheem kev sib txuas thiab lwm yam tshwj xeeb customization 1 xyoo warranty

Technical Parameters

Ntau yam	0-0.5MPa… 10MPa
Overload siab	200% FS
Kev puas tsuaj siab	300% FS
Hom Siab	Cov ntsuas ntsuas siab
Txheej txheem kev sib txuas	Customizable
Kev paub tseeb	±0.5%
Ntev -lub sij hawm ruaj khov	± 0.3% FS / xyoo
Ua haujlwm kub	-40-125 ° C
Cia kub	-40-150 degree
Cov khoom siv hluav taws xob (DC)	Voltage: 5 ± 0.5V Tam sim no: 12-36V
Tso zis teeb liab	0-5VDC (3.5mA), 4-20mA
Kev sib txuas hluav taws xob	Direct Cable
Kev tiv thaiv qib	IP65
Khoom siv	Lub tsev: stainless hlau 304; qhov (socket): yas; sensor: ceramic
Kev vibration	10gRMS, (20-2000) Hz

poob siab	100g, 11 ms
Rwb thaiv tsev	Ntau tshaj 100MΩ @ 250VDC
Teb sijhawm	Tsawg dua 1ms (@ 90% FS)
CE daim ntawv pov thawj	EMC: IEC 61326-1 Chav Kawm B Electrostatic paug tiv thaiv: IEC61000-4-2 Electromagnetic teb tiv thaiv: IEC61000-4-3 Kev tiv thaiv EFT: IEC61000-4-4 Kev tiv thaiv kab mob: IEC61000-4-5
